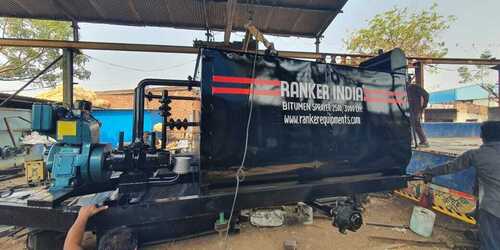

Truck Mounted Bitumen Sprayer

Usage/Application:

Asphalt Road Building

Model/Type

BPD  6000LTR,BPD 8000 LTR

Capacity

06/08/10 Ton

Brand/Make

Ranker India

Weight

2.5 TON

Power

Diesel

Tank Material

MS Plate

Fuel Type

Diesel

TECHNICAL SPECIFICATION FOR 6000 LTR

UNIT NAME

UNIT SPECIFICATIONS

BPD 06TON (6000 LTR)

Bitumen Tank Detail

Bitumen Tank Shape:

Rectangular/ Oval Shape

Tank MS Plate Thickness:

5MM

Tank Insulation (Glass Wool):

50MM Thickness

Manhole:

600MM

Filling of tank:

(A)Through manhole

(B) Through self-priming by own pump

Temperature:

0-300 C

Length:(L)

3000MM

Width: (W)

1950MM

Height:(H)

1850MM

Burner Detail

Burner Type :

Compressed Air Operated LAP BURNER

Fuel Consumption of Burner :

20Ltr/Hour

Burner Tank Capacity :

100 Ltr

Hand Torch Burner

26000 KCAL Capacity base Hand Torch Burner Fitted,Use for Spray bar heating & Manually Cleanning the Pipeline.

Engine

Engine Model, HP

25HP, 1500 RPM, Air Cool, Diesel Engine  (Kirlosker, HTC, Eicher..etc trusted  Brand )

Engine Fuel Tank

50 Ltr

Engine Fuel Consumption

3 to 4 Ltr/ Hour

 Air Compressor

Twin Cylinder, 03HP Head ,360 LPM Capacity  with working pressure of 9 Kg/Cm2

Bitumen Pump

2" x 2" Size Positive Displacement Gear Pump with Output of 400 Ltr/ Min Capacity

Spray bar

Standard Length 2.40 Mtr,  Length with Extended as per customer demand Maximum 6 Mtr.

Standard 19 Nozzles Fitted, 225MM Nozzel Distance in Single Spray bar, Its operated Air pneumatic Valve base.

Bitumen Spraying Pressure : 0-6 Kg/cm2

NOTE : Our Policy of the constant upgradation of products, So Specifications will change without any prior notice.

SUITABLE TRUCK DETAIL FOR PLACMENT

Truck Make

TATA/LEYLAND/EICHER

Wheel Base

166" /176"

Clear Chasis Length

5300MM

ROAD BROOMER/SWEEPER TECHNICAL SPECIFICATION

Sweeping Brush details

Main/Center Brush Materials: ( Possible  to choose as per customer demand)

Nylon Bristles Brush

MS Wire sticks Brush  (Optional)

PP Bristle Brush (Optional)

Main Brush Dimension:

550 to 600MM  x 150MM x 50MM Square Hole

Side Brush Materials: (Optional System)

Nylon Bristle Brush

Side Brush Dia:

550 to 600MM

Side Brush Function /Operation mode:

Up & down, fornt & back  possible

Water Spray & Waste collection bucket/Hopper data

Plastic Water Tank Capacity :

100 Ltr ( Removeable with stand)

Water sprinkle system:(Optional System)

Gravity base water spray  System.  ( Without Water pump & nozzels -Save the Maintence cost )

Waste collection Bucket /Hopper size :

0.25 cum, (250 Liter) , 150KG to 250Kg Approximate.

Waste collection Bucket /Hopper operate :

Hydraulic Lever valve fitted on body. (Pull & Push )

Machine Operation / Speed

Machine Mounting /Towing  :

Tractor back side attachment ( Like Trolly)

Machine Drive :

Hydraulic motor operated with Tractor hydraulic system.

Machine Speed  :

07 to 10 Km/Hour with low speed & low gear of tractor.

For Better result of the sweeping :

03KM/ Hour.

Max. operating pressure :

160 BAR.

Max.torque :

310n/m

Machines Dimension & Weight

Machine Sweeping length :

2100MM

Machine Length :

2150MM

Machine Width :

2450MM

Machine Height :

950MM

Machine Weight :

500KG to 700KG (As per selection of model)

Others used spares data

Wheels size & detail  ( 8" ) or (10") :

Heavy duty Solid Rubber + casting Tyre with bearings.

All Beanigs, Pedestal  :

Standard Make with load capacity tested 500Kg

Hydraulic base all Items :

Any Standard Compnay & Reliable brand with ISI marked

Hydraulic Motor, Hydraulic Cylinder, Hydraulic Lever valve & Hose pipes

Machines Plates,Tube & pipes /Shafts :

Tata Steel /JSW steel..etc all quality base.

Tractor Suitability

Tractor Suitability :

30HP to 45HP , Any brand make big Tractor with Hydraulic

Tractor Hydraulic Oil  :

Servo 68 or else
